management software

Infrastructure management HPE iLO Standard with Intelligent Provisioning (integrated), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional; requires licenses)

security features

Security Optional Locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0

server controller

Network controller HPE 331i Ethernet adapter, 1 Gb, 4 ports per controller and/or optional HPE FlexibleLOM, depending on model

Storage controller 1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model

server cooling

System fan features Redundant hot-plug fans, standard

server drives

Drive Supported 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser depending on configuration; 6 SFF drive (rear) optional or 3 LFF drive (rear) optional and 2 SFF or 2 dual UFF drive (rear); 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity

server extensions

Expansion slots 8, detailed explanations in the QuickSpecs

Server Form Factor

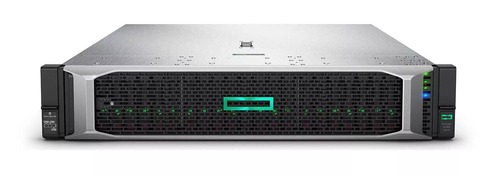

2U rack form factor

server storage

Memory type HPE DDR4 Smart Memory with optional Intel® Optane™ 100 Series Persistent Memory for HPE, depending on processor model selected. Intel Optane Persistent Memory for HPE is supported only on select 2nd Generation Intel Scalable Series processors, including: 82xx, 62xxR, 62xx, 52xxR, 52xx series processors, and 4215R and 4215 processors.

Maximum memory 3.0 TB with 128 GB DDR4, depending on processor model; 6.0 TB with HPE 512 GB 2666 Persistent Memory Kit, depending on processor model

Memory slots 24 DIMM slots

NVDIMM type HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable processors

NVDIMM-Rank Single Rank

NVDIMM capacity 16 GB

processor

processor type Intel

Processor product family Intel® Xeon® Scalable 8100/8200 series Intel® Xeon® Scalable 6100/6200 series Intel® Xeon® Scalable 5100/5200 series Intel®

Number of processors 1 or 2

Available processor core 4 to 28 cores, depending on model

Processor speed 3.9 GHz, maximum depends on processor

Processor cache 8.25 MB to 38.50 MB L3, depending on processor model
